Informazioni di Base.
Model No.
JF-R023
Materiale
PP-R
Collegamento
Femmina
dimensioni della scatola
48*38*38cm
colore
verde con nero
materiale del corpo
Ppb
dado mateirale
pp(supporto:din54004-8)
Pacchetto di Trasporto
360pieces/Pack 20pieces/Bag
Specifiche
can choose
Marchio
CERES/OEM
Origine
China
Capacità di Produzione
6000pieces/Day
Descrizione del Prodotto
![PP Pipe Connector and Fitting System for HDPE Hose Water Irrigaiton](http://img6.grofrom.com/www.canripipegroup.it/226f3j00iHFcoelnwkbB/PP-Pipe-Connector-and-Fitting-System-for-HDPE-Hose-Water-Irrigaiton.webp)
![PP Pipe Connector and Fitting System for HDPE Hose Water Irrigaiton](http://img6.grofrom.com/www.canripipegroup.it/226f3j00WHyckNiGloqC/PP-Pipe-Connector-and-Fitting-System-for-HDPE-Hose-Water-Irrigaiton.webp)

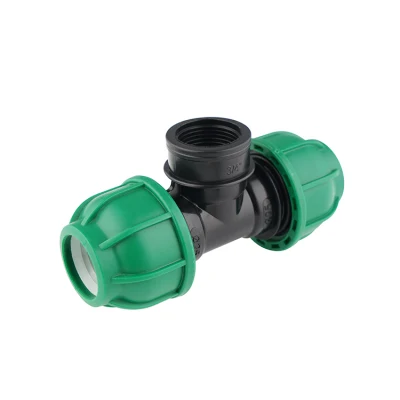

Raccordi di compressione in PP PN 10 BAR
Caratteristiche:il metodo di collegamento senza fusione termica riduce i costi di manodopera e di tempo ed è veramente veloce, semplice e sicuro
![PP Pipe Connector and Fitting System for HDPE Hose Water Irrigaiton](http://img6.grofrom.com/www.canripipegroup.it/226f3j00cIOkoTVWEcqe/PP-Pipe-Connector-and-Fitting-System-for-HDPE-Hose-Water-Irrigaiton.webp)
![PP Pipe Connector and Fitting System for HDPE Hose Water Irrigaiton](http://img6.grofrom.com/www.canripipegroup.it/226f3j00oLNcqghSkbkv/PP-Pipe-Connector-and-Fitting-System-for-HDPE-Hose-Water-Irrigaiton.webp)
parte | Materiale | colore |
Corpo di maggio(A) | Polipropilene ad alta resistenza e alta pressione (PPB) | Nero |
Anello fisso(D) | Polipropilene (PPB) | Nero |
Dado(B) | Polipropilene resistente ai raggi UV ad alta stabilità (supporto: DIN54004-8) | Verde |
Dispositivo di fissaggio(C) | Resina acetalica (POM) | bianco |
O-ring (e) | Gomma acrilonitrile (NBR) | Nero |
Standard di qualità
PRESSIONE DI ESERCIZIO :UNI9561:2006;DIN8076:2007;ISO14236:2000;GW335-B3:2011;SANS14236:2003;AS/NZS4129:2008
TUBO IN PE:UNI 7990:2004;UNI EN 12201-2:2004;DIN 8074;1999
TUBO FLESSIBILE:DM174 06/04/2004;BS 6920:2000W270:KTW
PULSANTE FILETTATO:ISO7-1:2007;UNI EN 10226-1;2006:UNI ENISO 228-1 2003;ANSI ASME B1.20.1:1983
FLANGIA:UNI EN 1092-1:2007;ISO7005-1:2011
DIMENSIONI MM | UNA BORSA (PEZZI) | PEZZI DI SCATOLA | PFA |
20*1/2"20 | 10 | 280 | 10 |
20*3/4"20 | 10 | 280 | 10 |
20*1"*20 | 10 | 210 | 10 |
25*1/2"25 | 5 | 170 | 10 |
25*3/4"25 | 5 | 160 | 10 |
25*1"*25 | 5 | 150 | 10 |
32*1/2"32 | 4 | 100 | 10 |
32*3/4"32 | 4 | 100 | 10 |
32*1"32 | 4 | 92 | |
40*1"*40 | 2 | 60 | 10 |
40*1¼"40 | 2 | 58 | |
40*1½"40 | 2 | 58 | |
50*1"*50 | 35 | ||
50*1¼"50 | 35 | ||
50*1½"50 | 35 | ||
63*1¼"63 | 18 | ||
63*1½"63 | 18 | ||
63*2"63 | 18 | ||
75*2"75 | 9 | ||
75*2½"75 | 9 | ||
75*3"75 | 9 | ||
90*2½"90 | 6 | ||
90*3"90 | 6 | ||
90*4"90 | 6 | ||
110*3"110 | 4 | 10 | |
110*4"110 | 4 | ||
Temperatura (°C) | da -10 a 25 | da 26 a 35 | da 36 a 45 |
PRESSIONE (BAR) | 10 | 8 | 6 |
